COFI Transformers in India | COFI Transformers in Mumbai

We are Importers and Distributors of COFI Transformers in India since 1996 -97

HOME

All COFI TRANSFORMERS

ACCESSORIES

MORE PRODUCTS



All COFI Transformers Accessories

COFI Primary Connections Plug

Standard buried cable
Plug A
Plug B
Plug C
Plug D
Plug T
Plug K



COFI High Voltage Cables

Cofi manufactures high voltage ignition cable for all market needs. From the simple copper wire with connector to more complex cable with carbon fiber con -ductor, connector and moulded protections. The High voltage cables with resistive conductor in carbon fiber and semi-conductive rubber are used for shielding electromagnetic disturbances. COFI EMC laboratory is fully equipped with instrument for EMC measurements for cable?s and filters verifications.

SILICONE/CARBON FIBER cable
1x1 diameter 7
SILICONE/ CARBON FIBER cable
1x1 diameter 5.2 mm
SILICONE/COPPER Cable 1x1
diameter 7 mm
SILICONE/COPPER Cable 1x1
diameter 4.7 mm
OZONE, PVC/COPPER Cable 1x1
diameter 7 mm



COFI Connections and protections

Connector for faston
Connector in phosphor
Connector, diameter
PVC over moulded Cap
PVC over moulded 90? Cap
Silicone Cap L = 35 mm
Terminal cap, type A
90? Silicone Cap for 6.3mm
90? Silicone Cap for 4 mm



COFI Installed Cable Lengths

Complete high-voltage cables. Complete cable for high pressure cleaners. It ensures perfect sealing of the transformer outputs for perfect protection against  humidity in dirty and contaminated environments.

  Cable in silicone/copper

  Cable in silicone/ carbon fiber, diameter 7 mm.

Custom-made length. Connector, diameter 4 mm, overmolded. 90? Connector, diameter 6.3 mm, with terminal cover.



 Mounting brackets

  40X40 mm galvanized bracket
  102X26 mm galvanized bracket



Filters

Emi disturbance suppression filter.







We are Importer, traders of COFI Transformer in bulk stock since 1996 -97



All type of COFI transformers are available in Mumbai, India (On Demand)

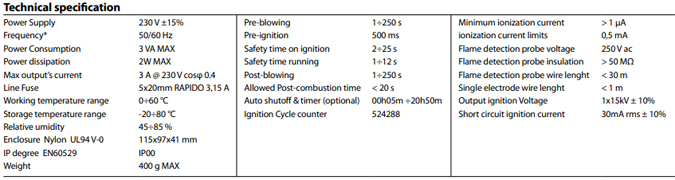

i-GAS :



Automatic control for gas burners with ignition and flame detection integrated











It allows the control of a single direct ignition burner till 350kW, with flame detection integrated (single electrode) or separate electrode.


i-GAS can freely fit to many different application conditions thanks to its easy programmability.
Some parameters are factory settled and password protected, directive compliant, others are customizable following customer?s needs.


An advanced self diagnostic system provide through an alphanumeric display all information about the cycle, lock causes, eventual applied device?s failures, or burner?s failures.


The reset push button, and its warning light, can be remoted through a socket connection.


The ignition transformer provide a high energy spark that warrant the ignition in every situation.
It is possible to use the same ignition electrode both to make ignition and flame readings. For ionization, or with a separate electrode (dedicated), plugging it directly to the control device socket. The socket give to the device easy serviceability, allowing quick plug/unplug operability.
i-GAS represents the burner?s supervisor being active all the time the power is on, even when the thermo switch do not require heat.



 All connected devices are monitored all the time, even in stand by condition. Any uneven failure might be detected before power heat is demanded by the thermo switch.


The circuit configuration allows the manufacturer to simplify cable harness of burners main case.



Compliance
Gas Devices directive (2009/142/CE)
Low voltage directive (2006/95/CE)
Machinery directive (2006/42/CE)
EMC directive (2004/108/CE)
Conform to EN298
Conform to EN230
Conform to EN746-2
Conform to UNI10156
DPR 15 November 1996 n? 661





All types of COFI Transformers are available in India  |  We are leading importers, distributors and stockists of COFI Transformers in India since 1996 - 97 (Yash Hitech Systems)

With the years of experience and knowledge, we are engaged in importing, trading, and supplying a wide array of COFI transformers. All these machines are well equipped and are highly demanded by our customers. Advanced technologies and latest equipments are used while manufacturing these items. Our ranges of products are obtainable at affordable rates. They are recognized for their special features like durability, precise dimension, corrosion resistance and sturdy construction. These are made in difference shapes and sizes in order to meet market demands and client's specifications.

www.cofitransformers.com/ | Yash Hitech Systems



Transformer collection | COFI Transformer collection : Cofi ignition unit for oil & gas burners/boilers:
Two pole transformers, TRE & TRS series up to 33 percent ED. Single pole transformers, P versions up to 33 percent ED. Two pole and Single pole transformers with 100 percent ED. 4 wire transformers for simultaneous ignition and flame monitoring. Transformers with 110 Volts, primary supply. High temperature silicone ignition cables up to 180 deg. C in 7 mm and 5 mm diameters.

Connecting lugs for cables and protecting sleeves, Cofi TRE 820/1 230v Electronic Ignition Transformer 4KV, Cofi ignition transformer trk2-25p 1x10000v, Cofi ignition transformer tre820 be 2x4 kv , Cofi ignition transformer tre820 pb 1x8 kv, Cofi ignition transformer tre820 pisob 1x8 kv, Cofi ignition transformer trs820 p 1x8 kv, Cofi ignition transformer trs820 ae 2x4 kv, Cofi ignition transformer trs830 p 1x8 kv, Cofi ignition transformer trs1020 be 2x5 kv.
